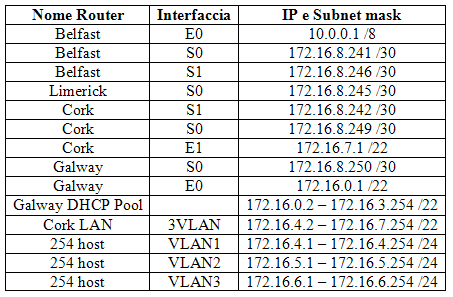

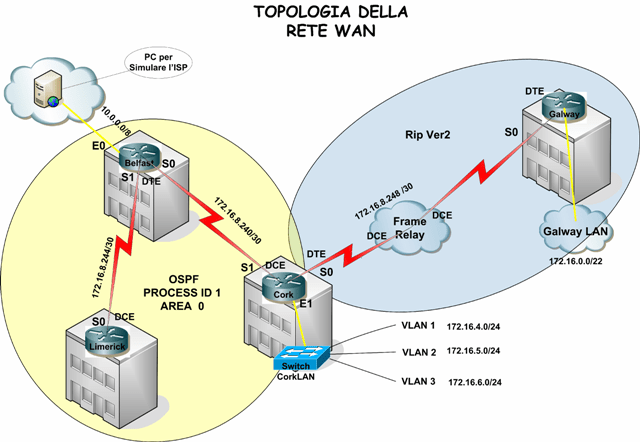

Fase 1 – Indirizzamento IP

Fase 2 – Configurazione dei Router e OSPF

Configurazione Router Limerick

enable
conf t
hostname Limerick
banner motd # Router Limerick - Accesso limitato #

line console 0
password cisco
login
exit

line vty 0 4
password cisco
login
exit

enable secret class
ip subnet-zero

int lo0
ip address 10.10.10.252 255.255.255.255
description Interfaccia Loopback0/0 – ID OSPF
no shutdown
exit

int s0
ip address 172.16.8.245 255.255.255.252
description Interfaccia Serial0/0 – DCE verso Belfast Serial0/1
clock rate 2000000
ip ospf message-digest-key 1 md5 7 ospfauth
no shutdown
exit

router ospf 1
network 10.10.10.0 0.0.0.255 area 0
network 172.16.8.244 0.0.0.3 area 0
area 0 authentication message-digest
exit

Configurazione Router Belfast

enable
conf t
hostname Belfast
banner motd # Router Belfast - Accesso limitato #

line console 0
password cisco
login
exit

line vty 0 4
password cisco
login
exit

enable secret class
ip subnet-zero

access-list 1 permit 172.16.0.0 0.0.255.255
access-list 1 deny any

ip nat pool public 192.168.1.6 192.168.1.6 netmask 255.255.255.252
ip nat source list 1 pool public overload
ip nat translation timeout 120
int lo0

ip address 10.10.10.254 255.255.255.255
description Interfaccia Loopback0/0 – ID OSPF
no shutdown
exit

int s0
ip address 172.16.8.241 255.255.255.252
description Interfaccia Serial0/0 – DCE verso Cork Serial0/1
clock rate 2000000
ip ospf message-digest-key 1 md5 7 ospfauth
ip nat inside
no shutdown
exit

int s1
ip address 172.16.8.246 255.255.255.252
description Interfaccia Serial0/1 – DTE verso Limerick Serial0/0
ip ospf message-digest-key 1 md5 7 ospfauth
ip nat inside
no shutdown
exit

int e0
ip address 10.0.0.1 255.0.0.0
description Interfaccia Ethernet0/0 – Connessione verso ISP
ip nat outside
no shutdown
exit

router ospf 1
network 10.10.10.0 0.0.0.255 area 0
network 172.16.8.240 0.0.0.3 area 0
network 172.16.8.244 0.0.0.3 area 0
default-information originate
area 0 authentication message-digest
exit

ip route 0.0.0.0 0.0.0.0 e0

Configurazione Router Cork

enable
conf t
hostname Cork
banner motd # Router Cork - Accesso limitato #

line console 0
password cisco
login
exit

line vty 0 4
password cisco
login
exit

enable secret class
ip subnet-zero

int lo0
ip address 10.10.10.253 255.255.255.255
description Interfaccia Loopback0/0 – ID OSPF
no shutdown
exit

int s1
ip address 172.16.8.242 255.255.255.252
description Interfaccia Serial0/1 – DTE verso Belfast Serial0/0
ip ospf message-digest-key 1 md5 7 ospfauth
no shutdown
exit

int s0
ip address 172.16.8.249 255.255.255.252
description Interfaccia Serial0/0 – DTE verso FrameRelay
encapsulation frame-relay
frame-relay inverse-arp
frame-relay local-dlci 16
frame-relay map ip 172.16.8.250 17 broadcast
bandwidth 64
no shutdown
exit

int e1.1
encapsulation dot1Q
ip address 172.16.4.1 255.255.255.0
description Interfaccia Ethernet0/1.1 – Gateway per VLAN1
no shutdown
exit

int e1.2
encapsulation dot1Q
ip address 172.16.5.1 255.255.255.0
description Interfaccia Ethernet0/1.2 – Gateway per VLAN2
no shutdown
exit

int e1.3
encapsulation dot1Q
ip address 172.16.6.1 255.255.255.0
description Interfaccia Ethernet0/1.3 – Gateway per VLAN3
no shutdown
exit

router ospf 1
network 10.10.10.0 0.0.0.255 area 0
network 172.16.8.240 0.0.0.3 area 0
network 172.16.4.0 0.0.0.255 area 0
network 172.16.5.0 0.0.0.255 area 0
network 172.16.6.0 0.0.0.255 area 0
area 0 authentication message-digest
redistribute rip subnets
exit

router rip
version 2
network 172.16.8.248
redistribute ospf 1 match internal external 1 external 2
default-metric 17

Configurazione Router Galway

enable
conf t
hostname Galway
banner motd # Router Galway - Accesso limitato #

line console 0
password cisco
login
exit

line vty 0 4
password cisco
login
exit

enable secret class
ip subnet-zero

int s0
ip address 172.16.8.250 255.255.255.252
description Interfaccia Serial0/0 – DTE verso FrameRelay
encapsulation frame-relay
frame-relay inverse-arp
frame-relay local-dlci 17
frame-relay map ip 172.16.8.249 16 broadcast
bandwidth 64
no shutdown
exit

int e0
ip address 172.16.0.1 255.255.252.0
description Interfaccia Ethernet0/0 – Gw e Server DHCP per LAN
no shutdown
exit

router rip
version 2
network 172.16.8.248
exit

ip dhcp pool ip_dinamici
network 172.16.0.0 /22
default-router 172.16.0.1
dns-server 172.16.0.2 151.99.125.2 151.99.125.3 212.216.112.112
domain-name development.local
exit

ip dhcp excluded-address 172.16.0.1 172.16.0.2

Fase 3 – Configurazione del NAT, simulazione Frame Relay, creazione ACL

Router Belfast (NAT)

access-list 1 permit 172.16.0.0 0.0.255.255
access-list 1 deny any

ip nat pool public 192.168.1.6 192.168.1.6 netmask 255.255.255.252
ip nat source list 1 pool public overload
ip nat translation timeout 120

int s0
ip address 172.16.8.241 255.255.255.252
description Interfaccia Serial0/0 – DCE verso Cork Serial0/1
clock rate 2000000
ip ospf message-digest-key 1 md5 7 ospfauth
ip nat inside
no shutdown
exit

int s1
ip address 172.16.8.246 255.255.255.252
description Interfaccia Serial0/1 – DTE verso Limerick Serial0/0
ip ospf message-digest-key 1 md5 7 ospfauth
ip nat inside
no shutdown
exit

int e0
ip address 10.0.0.1 255.0.0.0
description Interfaccia Ethernet0/0 – Connessione verso ISP
ip nat outside
no shutdown
exit

Router Crok (Frame Relay)

int s0
ip address 172.16.8.249 255.255.255.252
description Interfaccia Serial0/0 – DTE verso FrameRelay
encapsulation frame-relay frame-relay inverse-arp
frame-relay local-dlci 16
frame-relay map ip 172.16.8.250 17 broadcast
bandwidth 64
no shutdown
exit

Router Galway (Frame Relay)

int s0
ip address 172.16.8.250 255.255.255.252
description Interfaccia Serial0/0 – DTE verso FrameRelay
encapsulation frame-relay
frame-relay inverse-arp
frame-relay local-dlci 17
frame-relay map ip 172.16.8.249 16 broadcast
bandwidth 64
no shutdown
exit

Router Galway (ACL)

access-list 100 permit 172.16.0.0 0.0.3.255 10.0.0.0 0.255.255.255 eq 80
access-list 100 permit ip any 172.16.0.0 0.0.255.255

Configurazione router come switch Frame Relay

en
conf t
hostname Sw_FR
frame-relay switching

int s0
encapsulation frame-relay
clock rate 64000
bandwidth 64
frame-relay intf-type dce
frame-relay route 17 interface serial 1 16
no shut
exit

int s1
encapsulation frame-relay
clock rate 64000
bandwidth 64
frame-relay intf-type dce
frame-relay route 16 interface serial 0 17
no shut
exit

Fase 4 – Configurazione delle VLAN e DHCP

Configurazione Switch CorkLan

enable
conf t
hostname CorkLan

line console 0
password cisco
login
exit

line vty 0 11
password cisco
login
exit

enable secret class

vlan database
vlan 2
vlan 3
vtp v2-mode
vtp domain Cork
vtp trasparent
exit

int fa0/1
switchport mode trunk
speed 100
duplex full
switchport port-security maximum 1
switchport port-security violation shutdown
exit

int fa0/2
switchport mode access
switchport access vlan 1
speed 10
duplex full
switchport port-security maximum 1
switchport port-security violation shutdown
exit

int fa0/3
switchport mode access
switchport access vlan 1
speed 10
duplex full
switchport port-security maximum 1
switchport port-security violation shutdown
exit

int fa0/4
switchport mode access
switchport access vlan 1
speed 10
duplex full
switchport port-security maximum 1
switchport port-security violation shutdown
exit

int fa0/5
switchport mode access
switchport access vlan 2
speed 10
duplex full
switchport port-security maximum 1
switchport port-security violation shutdown
exit

int fa0/6
switchport mode access
switchport access vlan 2
speed 10
duplex full
switchport port-security maximum 1
switchport port-security violation shutdown
exit

int fa0/7
switchport mode access
switchport access vlan 2
speed 10
duplex full
switchport port-security maximum 1
switchport port-security violation shutdown
exit

int fa0/8
switchport mode access
switchport access vlan 2
speed 10
duplex full
switchport port-security maximum 1
switchport port-security violation shutdown
exit

int fa0/9
switchport mode access
switchport access vlan 3
speed 10
duplex full
switchport port-security maximum 1
switchport port-security violation shutdown
exit

int fa0/10
switchport mode access
switchport access vlan 3
speed 10
duplex full
switchport port-security maximum 1
switchport port-security violation shutdown
exit

int fa0/11
switchport mode access
switchport access vlan 3
speed 10
duplex full
switchport port-security maximum 1
switchport port-security violation shutdown
exit

int fa0/12
switchport mode access
switchport access vlan 3
speed 10
duplex full
switchport port-security maximum 1
switchport port-security violation shutdown
exit

Configurazione Router Gateway come server DHCP

ip dhcp pool ip_dinamici
network 172.16.0.2 /22
default-router 172.16.0.1
dns-server 172.16.0.2 151.99.125.2 151.99.125.3 212.216.112.112
domain-name development.local
exit

ip dhcp excluded-address 172.16.0.1 172.16.0.2
